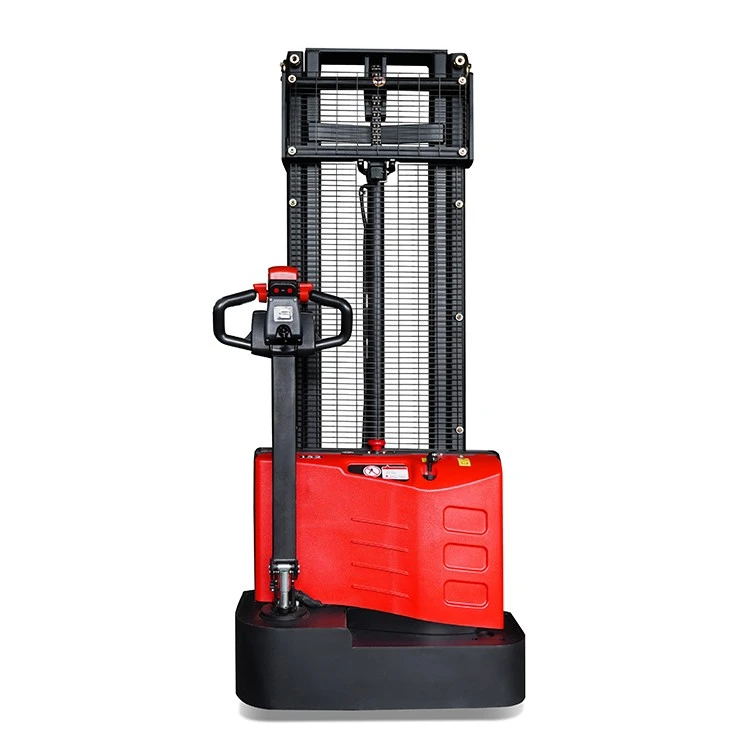

Product characteristics
■ Fully passed the stability test: fully pass
■ National Security and stability test standard GB / T26949.1~2012
■ Vertical walking function: suitable for narrow channel stacking;
■ Long handle with light steering;
■ Good offset vision;
■ Wide body can stand to drive;
■ Special mechanical design of the high-strength chassis: through the plate, beam, The comprehensive configuration of the box structure greatly reduces the deformation of the heavy load of the chassis
few;
■ Special designed door frame beam structure: through the finite element stability, Qualitative test of the key points of the gantry strength, and use the frame, The structure strengthens it, greatly improves the rigidity of the door frame;
■ Main department sets: the annual use of more than 100,000 sets;
■ Torsion-resistant robot cable: imported waterproof connector;
■ Brake protection: autonomous design
■ Maintenance-free battery: long cycle life maintenance-free
Product Parameter
| Feature | ||||
| 1.2 |
Model designation
|
FTT15
|
||
| 1.4 |
Operator type
|
walking style | ||
| 1.5 |
Rated capacity
|
Q |
kg |
2000 |
| 1.6 |
Load center distance
|
c |
mm |
500 |
| 1.8 |
Load distance
|
x |
mm |
801 |
| 1.9 |
Wheelbase
|
y |
mm |
1204 |
| Weight | ||||
| 2.1 |
Service weight (include battery) |
kg |
510 | |
| 2.2 |
Axle loading, laden driving side/loading side |
kg |
760/1250
|
|
| 2.3 |
Axle loading, unladen driving side/loading side |
kg |
380/130
|
|
| Tires, Chassis | ||||
| 3.1 |
Tyre type driving wheels/loading wheels |
polyurethane | ||
| 3.2 |
Tyre size, driving wheels(diameter×width) |
mm |
Ф210x70
|
|
| 3.3 |
Tyre size, loading wheels(diameter×width) |
mm |
Ф74x88
|
|
| 3.4 |
Tyre size, caster wheels(diameter×width) |
mm |
Ф130x55
|
|
| 3.5 |
Wheels , number driving ,caster/loading (x=drive wheels) |
mm |
1x , 1 / 4
|
|
| 3.6 |
Track width, front ,driving side |
b10 |
mm |
616 |
| 3.7 |
Track width,rear,loading side |
b11 |
mm |
400 |
| Size | ||||
| 4.0 | Maximum lifting height of mast | H | mm | 2513 |
| 4.2 | Minimum height after the mast is lowered | h1 | mm | 1817 |
| 4.3 | Free lifting height | h2 | mm | - |
| 4.4 |
Lift height |
h3 |
mm |
2430 |
| 4.5 | Mast height at highest lifting point | h4 | mm | 3032 |
| 4.6 | Fork leg lifting height |
h5 |
mm |
- |
| 4.9 |
Height drawbar in driving position min./max |
h14 |
mm |
760 / 1140
|
| 4.10 | Wheel arm height | h8 | mm | - |
| 4.15 |
Lowered height |
h13 |
mm |
90 |
| 4.19 |
Overall length |
l1 |
mm |
1708 |
| 4.20 |
Length to face of forks |
l2 |
mm |
558 |
| 4.21 |
Overall width |
b1/ b2 |
mm |
882 |
| 4.22 |
Fork dimensions |
s/ e/ l |
mm |
60/170/1150 |
| 4.24 | Outer width of shelf | b3 | mm | 680 |
| 4.25 |
Distance between fork-arms |
b5 |
mm |
570 |
| 4.32 |
Ground clearance, center of wheelbase |
m2 |
mm |
23 |
| 4.34.1 |
Aisle width for pallets 1200 × 1000 crossways |
Ast |
mm |
2295 |
| 4.34.2 |
Aisle width for pallets 800 × 1200 lengthways |
Ast |
mm |
2228 |
| 4.35 | Turning radius |
Wa |
mm |
1463 |
| Performance Parameters | ||||
| 5.1 | Traveling speed, full/unloaded |
|
km/h |
3.7/4.0 |
| 5.2 | Fork lifting speed, full/unloaded |
m/ s |
0.085/0.13 | |
| 5.3 | Also the descending speed, full load/unloaded | m/ s | 0.085/0.13 | |
| 5.8 | Maximum gradeability, full/unladen | % |
3/10
|
|
| 5.10 | Brake type | Electromagnetic | ||
| Electric motor, Power source | ||||
| 6.1 |
Drive motor rating S2 60 min |
kW
|
0.75 | |
| 6.2 |
Lift motor rating at S3 15% |
kW
|
2.2 | |
| 6.4 |
Battery voltage/nominal capacity K5 |
V/ Ah
|
24/80
|
|
| 6.5 |
Battery weight |
kg |
38 | |
| 6.6 | Energy consumption values according to DIN EN 16796 | kWh/h | 0.79 | |
| 6.7 | Transshipment volume according to VDI 2198 | t/h | 36 | |
| 6.8 | Transport efficiency according to VDI 2198 | t/kWh | 46.15 | |
| Other Data | ||||
| 8.1 |
Type of drive control |
AC
|
||
| 10.5 |
Steering type |
Mechanical | ||
| 10.7 |
Sound pressure level at the driver's ear |
dB (A)
|
74 | |
| 15.1 | A | 10 | ||
The above content is the product introduction, the chart shown may include non-standard configuration, if there is any improvement in appearance, technical parameters or configuration, we will try to update the data in time, but in some cases these information may still be different from the latest situation, please contact the business manager for confirmation before placing an order.
Product Parameter
| Feature | ||||
| 1.2 |
Model designation
|
FTT15 |
||
| 1.3 |
Drive unit
|
Electrics |
||
| 1.4 |
Operator type
|
walking style | ||
| 1.5 |
Rated capacity
|
Q |
kg |
1500 |
| 1.6 |
Load center distance
|
c |
mm |
500 |
| Weight | ||||
| 2.1 |
Service weight (include battery) |
kg |
550 | |
| Size | ||||
| 4.0 | Maximum lifting height of mast | H | mm | 2513 |
| 4.2 | Minimum height after the mast is lowered | h1 | mm | 1817 |
| 4.4 |
Lift height |
h3 |
mm |
2430 |
| 4.15 |
Lowered height |
h13 |
mm |
90 |
| 4.19 |
Overall length |
l1 |
mm |
1708 |
| 4.21 |
Overall width |
b1/ b2 |
mm |
882 |
| 4.25 |
Distance between fork-arms |
b5 |
mm |
366-743mm |
| 4.34.1 |
Aisle width for pallets 1200 × 1000 crossways |
Ast |
mm |
2320 |
| 4.34.2 |
Aisle width for pallets 800 × 1200 lengthways |
Ast |
mm |
2280 |
| 4.35 | Turning radius |
Wa |
mm |
1463 |
| Performance Parameters | ||||
| 5.1 | Traveling speed, full/unloaded |
|
km/h |
3.7/4.0 |
| 5.2 | Fork lifting speed, full/unloaded |
m/ s |
0.085/0.13 | |
| Electric motor | ||||
| 6.4 |
Battery voltage/nominal capacity K5 |
V/ Ah
|
24/80
|
|
Curve Of Load
Two-Dimensional Line Diagram
Two-Dimensional Line Diagram
Optional Table
| Category | Optional items | FTT15 |
| 1.1 | Fork specifications |
●570*1150 ○685*1150 ○570*1000 ○685*1000 ○570*1220 ○685*1220
|
| 1.4 | Fork carriage width |
●680○770mm
|
| 2.1 | Carrying wheel type | ●Two wheels |
| 2.2 | Carrying wheel material | ●Polyurethane |
| 2.3 | Driving wheel material | ●Polyurethane |
| 2.7 | Battery capacity | ●80Ah o85Ah |
| 2.8 | Charger | ●24V-10A built-in charger |
| 2.9 | Electricity meter | ●Timing |
| 2.16 | Handle head type | ●Big handle for both hands |
| 3.3 | Universal wheel | ●Yes and cannot be customized |
| 3.11 | rearview mirror | ●None oYes and cannot be customized |
| 3.16 | Walking upright with handle | ●Yes and cannot be customized |
| Note: ●Standard configuration ○Optional configuration -This item is not suitable for this product | ||
| Category | Optional items | EST152Z (adjustable covered fork) |
| Size | Fork specifications | ●685*1150 ○685*1000 ○685*1220 |
| Fork carriage width | ●800mm | |
| Configuration | Carrying wheel type | ●Two wheels |
| Carrying wheel material | ●Polyurethane | |
| Driving wheel material | ●Polyurethane | |
| Battery capacity | ●80Ah ○85Ah | |
| Charger | ●24V-10A built-in charger | |
| Electricity meter | ●Timing | |
| Handle head type | ●Big handle for both hands | |
| Function | Universal wheel | ●Yes and cannot be customized |
| Walking upright with handle | ●Yes and cannot be customized | |
| Note: ●Standard configuration ○Optional configuration -This item is not suitable for this product | ||
