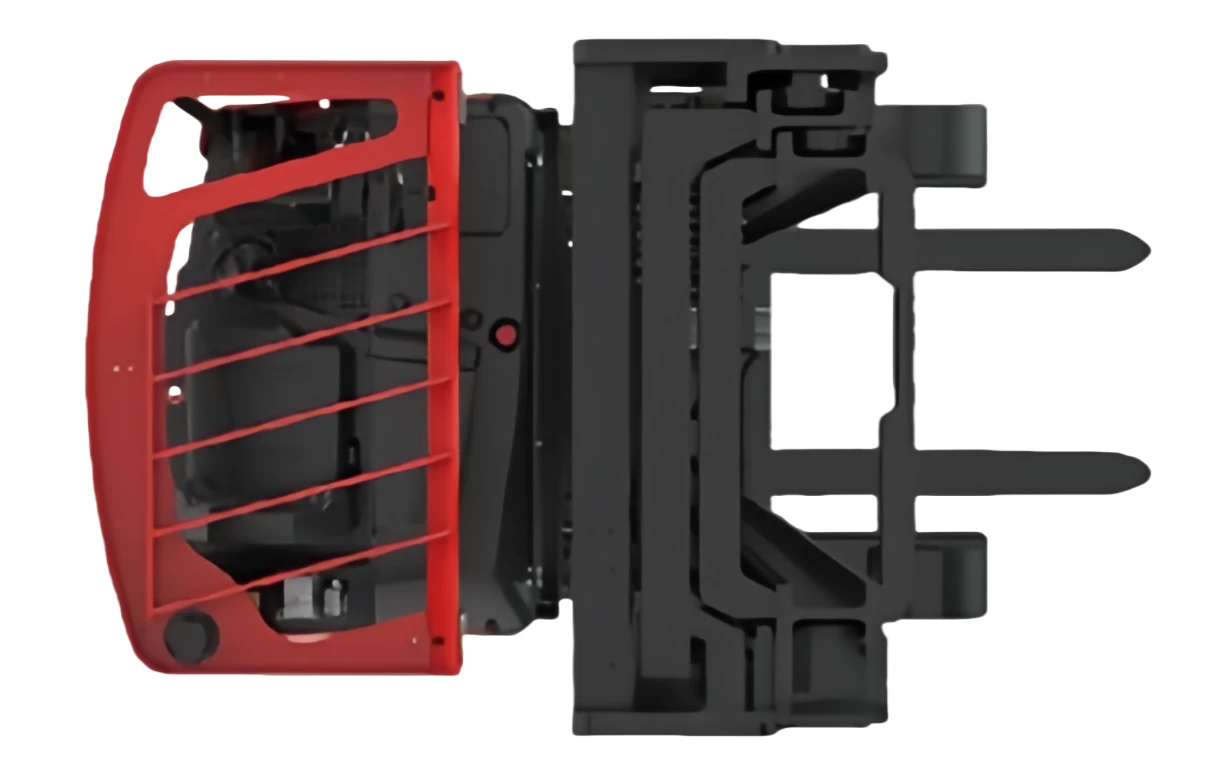

Product Overview
High stability
1. CHH torsion-resistant large-size channel steel, high-position stacking is more stable;
2. Finite element optimized reinforced crossbeam, stronger torsion resistance and higher door frame strength.
High efficiency
1. Vector control system, fast response in operation;
2. High-power lifting motor, improved work efficiency;
3. Electronic steering and electronic braking, sensitive and effortless operation;
4. Integrated control, reduced operation range, improved work efficiency,
Low energy consumption
1. Vector control system, efficient use of energy;
2. Motor regenerative braking, energy recovery, improved energy utilization;
3. Low-current pipeline system, reduced internal resistance.
Wide field of view
1. Broad driving vision, safer driving;
2. Wide stacking vision, more efficient high-position stacking;
3. The gantry pipeline offset design effectively utilizes the visual space;
4. The small cross-section beam design provides a larger operating field of view.
| model | Box Size/cm | |
| Power Type | electric | |
| Operation type | ||
| Rated load | KG | 2500 |
| Load center distance | mm | 600 |
| Weight (including battery) | KG | 3500 |
| Mast height after lowering | mm | 2799 |
| Maximum lifting height of standard mast | mm | 6500 |
| Mast height when lifted to the highest position | mm | 7565 |
| Height of roof guard (cabin) | mm | 2210 |
| Vehicle length |
mm |
2591 |
| Overall width | mm | 1260/1350 |
| Fork dimensions | s/ e/ l | 40/120/1070 |
| External width of backstop | mm | 990 |
| External width of fork | mm | 250/770 |
| Distance between wheel arms | mm | 915 |
| Width of right-angle stacking channel (pallet is 1000 length × 1200 width) | mm | 2950 |
| Width of right-angle stacking channel (pallet is 800 width × 1200 length) | mm | 3000 |
| Turning radius | mm | 1960 |
| Vehicle length (excluding forks) | mm | 2138 |
| Travel speed, full load/no load | km/h | 9/9.5 |
| Lifting speed, full load/no load | m/s | 0.35/0.5 |
| Lowering speed, full load/no load | m/s | 0.41/0.38 |
| Maximum climbing grade, full load/no load | % | 10/15 |
| Battery voltage/nominal capacity | V/Ah | 48/700 |
