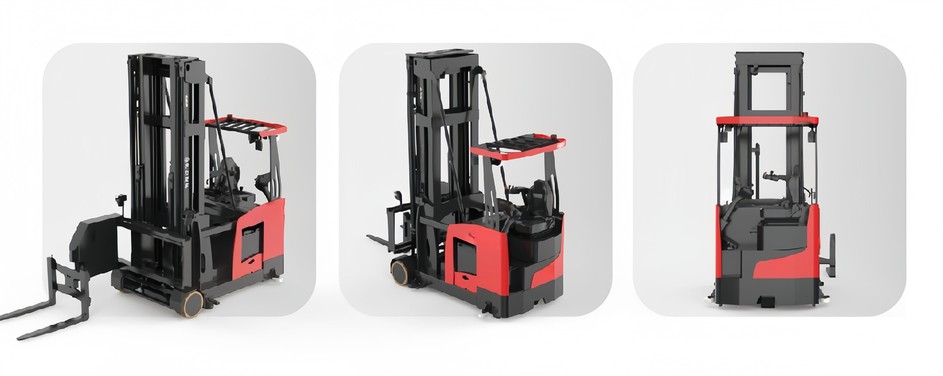

Three-way Stacking Forklift

Three-way Stacking Forklift
Product Introduction:
Why book with us? Customized demand, strong adaptability 1. It can adapt to different types of shelves and storage needs, whether it is high-level shelves or low-level shelves, it can easily cope with it 2. It can be adjusted and optimized according to the specific layout of the warehouse to...
Send Inquiry
Description
Technical Parameters

ea817a5535de1e16f0c30d534a92eb0



model  FTTS15
Power Type   electric
Operation type   Ride-on
Rated load KG 1500
Load center distance mm 600
Weight (including battery) KG 7020
Tire type, driving wheel/load wheel (steering wheel)   Polyurethane
Mast height after lowering mm 3460
Standard maximum lifting height mm 6500
Mast height when lifted to the highest position mm 7695
Height of roof guard (cabin)   2346
Vehicle length   3048
Overall width   1270/1500
Fork size   50/120/1200
External width of backrest   860
External width of fork   340-800
Turning radius   2185
Travel speed, fully loaded/unloaded km/ h 10/10.5
Lifting speed, full load/no load m/s 0.4/0.47
Lowering speed, full load/no load m/s 0.55/0.45
Battery voltage/nominal capacity V/Ah 48/560

Why book with us?

Customized demand, strong adaptability

1. It can adapt to different types of shelves and storage needs, whether it is high-level shelves or low-level shelves, it can easily cope with it
2. It can be adjusted and optimized according to the specific layout of the warehouse to meet the actual needs of the enterprise.



Optimize processes and improve efficiency

There is no need to turn in the shelf aisle. The fork can rotate 180° and move left and right to quickly and accurately reach various positions on the shelf, realizing free storage and stacking of goods on both sides.



Reasonable space layout, more comfortable driving

The spacious cab and reasonable control layout provide the driver with a comfortable and efficient working environment. It maintains stability during high-speed movement and heavy-load operation, reduces cargo damage and operating errors, and ensures safety and efficiency of operations.





 20241128-mNsetzMZBJ
